Ignition Switch Wiring - P1800 & 1800S 1961-1969

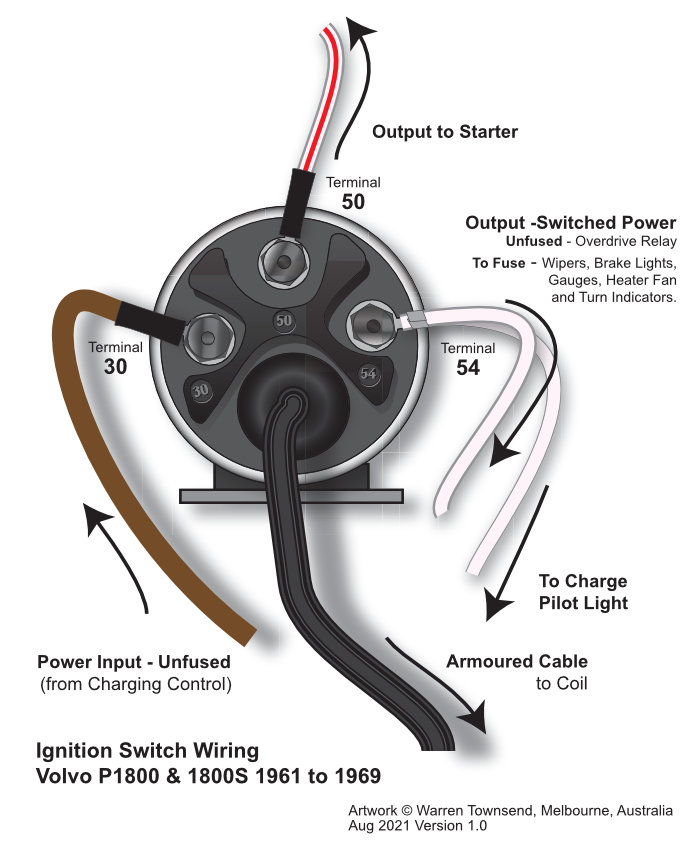

The electrical cables are connected according to this diagram.
